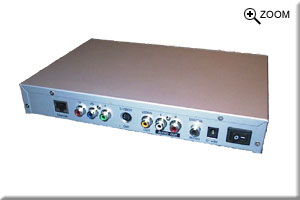

 The Mind Factory ’s IP VOD STB (Internet Protocol Video On Demand S
et Top Box) is a complete set-top box for Microsoft Windows Server 2003 streaming networks. It is a low cost TV client solution that receives, decodes and displays
Windows Media 9 Series (WM9, WMV) content to a TV at full D1 resolution. It easily connects to existing publishing points for simple integration. (IP STB)
 We can also supply competative stream hosting for all your applications! You can find more details here.
The IP STB VOD is powered by a very powerful video centric SoC. It is configured to decode full D1 resolution, WM9 Main
Profile, at Medium Level, video and audio streams up to 6Mbps. It is one of the first embedded devices to pass the conformance tests and be
approved by Microsoft for main profile video thus enabling display of the Windows Media Compatible logo. The SoC is also configured to implement
Microsoft’s optional WM9 post-processing technology to render excellent TV video quality even at bit rate streams as low as 300Kbps. Video-on-Demand
(VOD) TV services to consumer homes over xDSL, 10/100 Ethernet, FTTC or other broadband distribution networks.
Fully compatible with Microsoft WM9 post-processing technology Conformance tested and approved by Microsoft (enables OEMs to display the Windows Media
Compatible logo) Meets requirements to support Microsoft’s new Windows Media Digital Rights Management (DRM) software (available 3Q 2004) Supports
streaming from Windows Server 2003 networks Software field-upgradeable 10/100 Base-T Ethernet port User Interface IR remote control 180 x 160 x 30mm External 5V DC power supply
TYPICAL APPLICATIONS:
- Residential Video on Demand IP Set Top Box
- Hotel Motel in suite entertainment
- Distance education
- Video Conferencing
KEY FEATURES:
- BSP15 SoC processor
- 64MB SDRAM memory
- 16MB Flash
- 10/100 Base-T Ethernet port
- TV interface
- S-Video, YUV and Composite video out (720p)
- Analog stereo and digital S/PDIF audio out
- IR receiver on front panel for remote control interface
- IDE connector for optional disk drive
- 180 x 160 x 30mm
- External 5V DC power supply
- Power switch
SOFTWARE OVERVIEW:
- Microsoft Windows Media 9 Series decoder
- Able to play WMV WMVHD WMA
- Full D1 video resolution
- Up to 6Mbps video and audio stream decode capability
- Fully compatible with Microsoft WM9 post-processing; de-blocking and de-ringing technologies
- Conformance tested and approved by Microsoft
- Meets requirements to support Microsoft’s new Windows Media Digital Right Management (DRM) software (available 3Q 2004)
- Supports streaming from Windows Server 2003 networks
- Open browser provided by EnReach Technology™
- Complete Internet browser
- HTML Rendering – HTML 4.0 with cascading style sheets to support program guide, feature setting and system UI
- Macromedia Flash™ support – partial 4.0 and below
- 1.1 Java Script Support
- Graphical User Interface (GUI) using IR remote control
- Software field-upgradeable
|
