LEDMAU5: Make the music visible.
A 753-pixel LED head that reacts to music. Firmware on the PCB renders the effects; you compose them from a browser over Bluetooth.
Compose light that moves with the music.
LEDMAU5 is the controller for a 753-pixel LED head: 608 pixels in the face and 72 in each ear. Firmware on the PCB renders every effect locally and listens to the room through an on-board microphone. A browser app composes the look over Bluetooth.
Layered composer
Eyes, mouth, ears, background, spectrum peaks and bars, each with its own effect, brightness and colour.
Reacts to the beat
Microphone audio goes through a 512-point FFT for beat detection and spectrum bars.
Live preview and presets
The app mirrors what the head shows, and ten preset slots are saved on the device.
Power up, connect, compose.
Power it up
Connect the head to its rated external supply. The board renders effects on its own.
Connect
Open the app in Chrome or Edge and pick the device named LEDMAU5.
Compose
Choose an effect for each layer, tune it, and save the result as a preset.

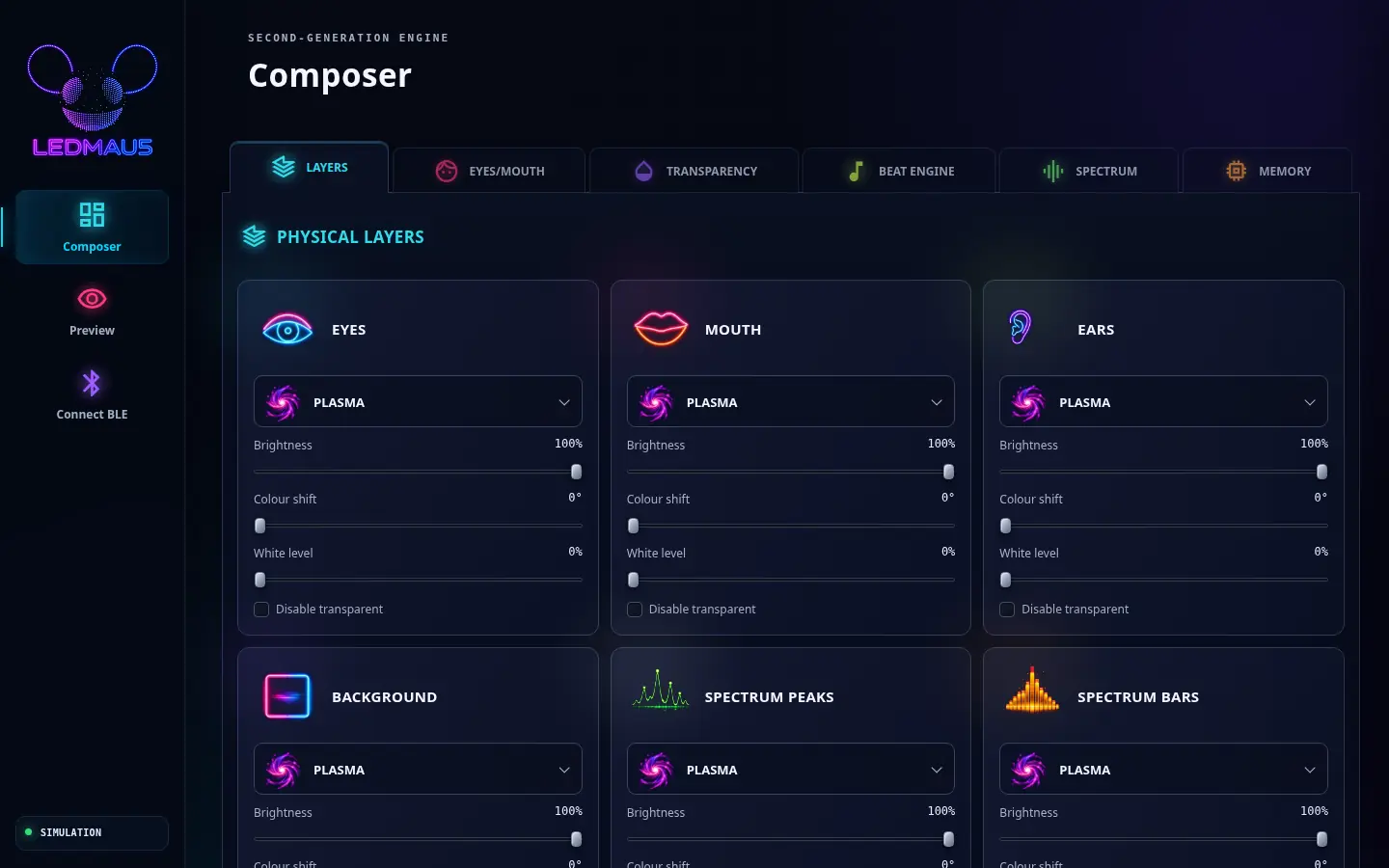

Compose light, layer by layer.
Pick an effect for the eyes, mouth, ears and background, tune each one, and watch the head respond live.
Fourteen effects to start with.
Each effect is rendered on the device itself, so it stays smooth and keeps running with no phone connected.
Plasma
Hue
Sparkles
Digital Rain
Fire
Fireworks
Water Splash
Spirals
Lizard Skin
Northern Lights
Lightning Bolts
Star Travel
Max Wave
LinesSee it before you send it.

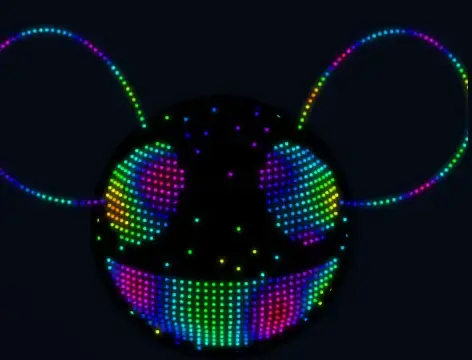

The app mirrors the head’s real output, with a live preview of every pixel.
- Preview effects in the browser before you commit
- Save ten presets directly on the device
- No hardware yet? Explore everything in the built-in simulation
The details.
- LEDs
- 753 WS2811 pixels: 608 face, 72 per ear, 1 spare
- Processor
- ESP32 with 8 MB flash and PSRAM
- Audio input
- PDM microphone, 512-point FFT, 37 spectrum bands
- LED output
- DMA-driven SPI on a dedicated core, with power limiting
- Control
- Bluetooth LE, using Web Bluetooth
- Presets
- Ten slots stored on the device
- Live preview
- Streamed over Bluetooth
Every layer, in-house.
- The controller PCB and LED power design
- Native firmware for every effect, the audio engine and Bluetooth
- The web controller, with composer, preview and built-in simulator
- Effect and layer artwork for the interface
Power the head from its rated external supply. Never run the full LED chain from a computer USB port. Web Bluetooth requires Chrome or Edge on desktop or Android.
Open the controller.
Try every effect in the browser, with or without hardware.
